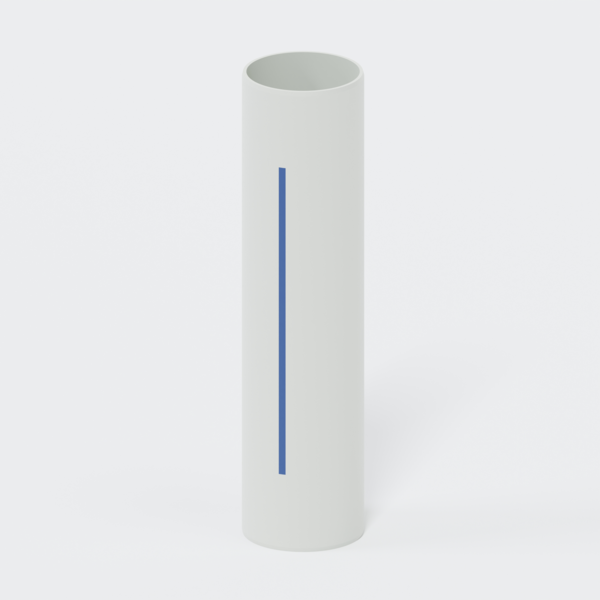

POLO-ECO plus Premium 16RW Smooth pipe DN 250/1000

Three-layer solid wall sewage pipe made of mineral-reinforced polypropylene (PP-ML), halogen- and lead-free,
stiffness class: SN 16, ring rigidity ≥ 16kN/m² according to DIN EN ISO 9969,
mean coefficient of elongation: 0.04 mm/mK,
pipe roughness 0.01 mm,
tested abrasion resistance 0.08mm at 200,000 load cycles according to Darmstadt method, tightness against hydrostatic pressure from outside up to 10 m water column, suitable for use in water protection zones II and III,
tested according to ATV-DVWK-A 142 2002-11 up to 5 bar.
Proof of root resistance according to DIN 4060_2016
Top layer colour: Opal white with blue stripes in the third points.
E-module (1 N/mm² = 1 MPa): Long term: > 900 MPa
Short term: > 3,400 MPa
DiBt approval number Z-42.1-423

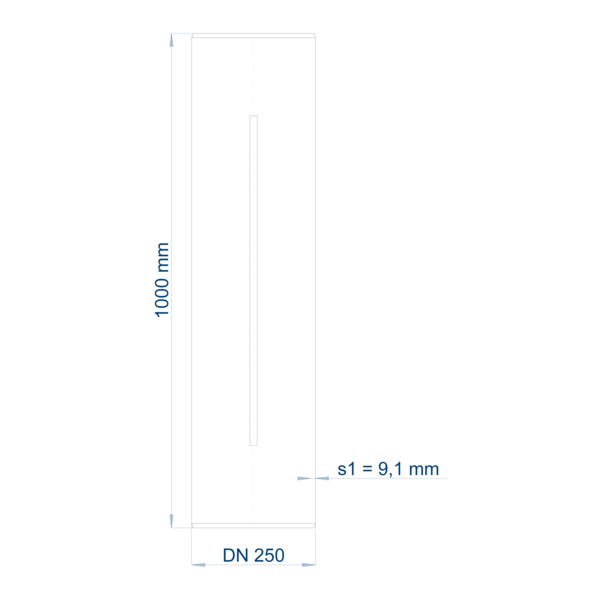

Dimension: 250 mm
Length: 1 m
System: POLO-ECO plus Premium 16RW
Article number: 05749
